法國 Petercem - 電流感測器

【法國Petercem 電流感測器Current Sensor】

體積小，重量輕，易安裝

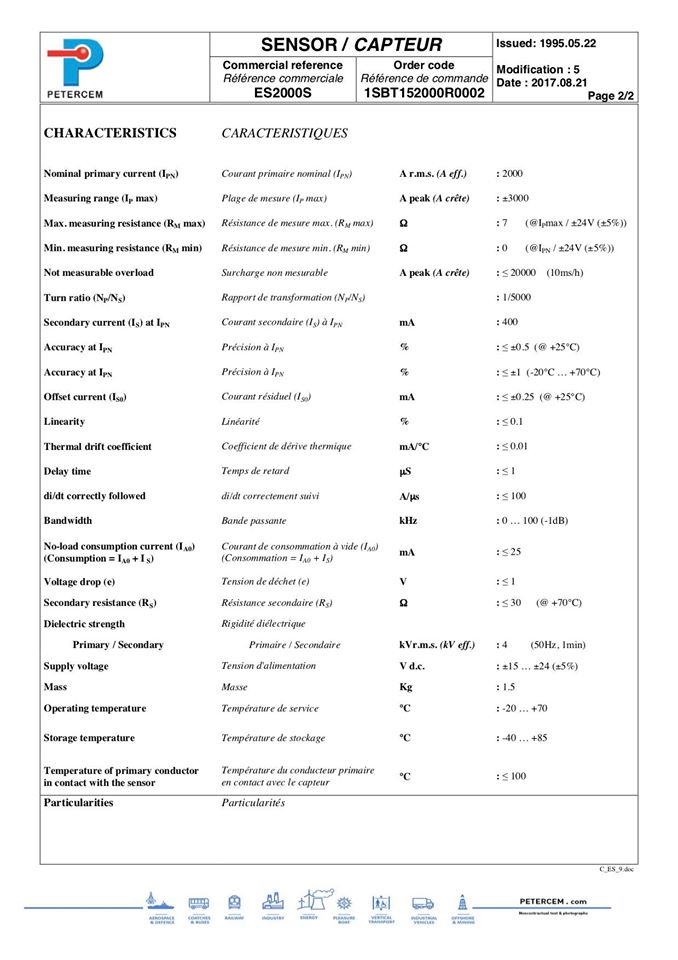

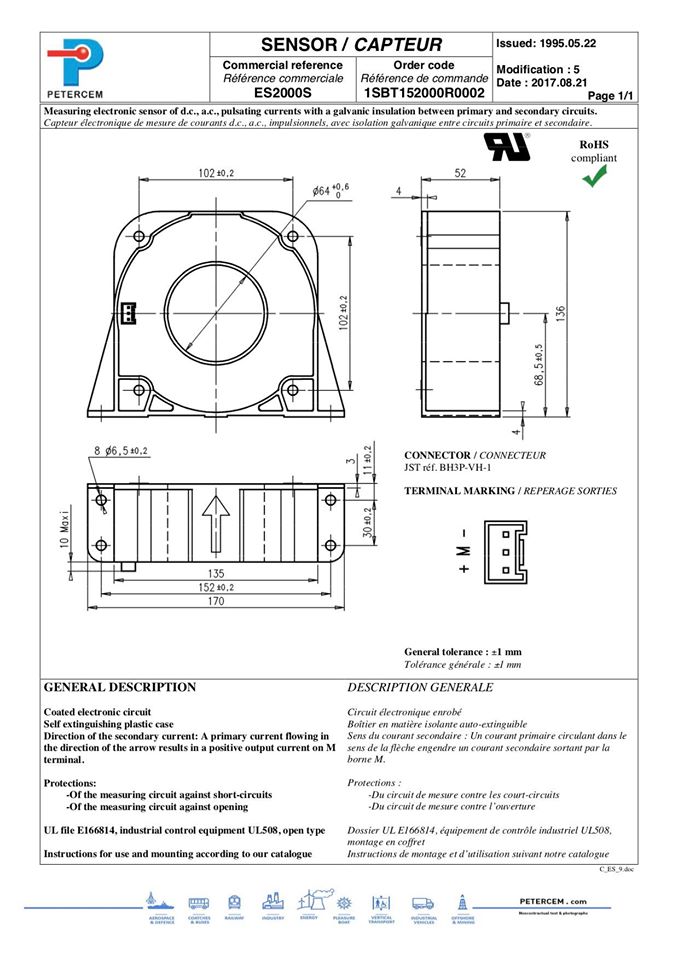

Type: ES2000S
Nominal primary current: 2000A
Measuring range : ±3000 A
Turn ratio : 1/5000
Accuracy at : ≤ ±1 (-20°C … +70°C)
Linearity: : ≤ 0.1%
Bandwidth: 0…100(-1dB) kHz
Supply voltage: : ±15 … ±24 V
Conformity: EN50178, EN61000-6-2
